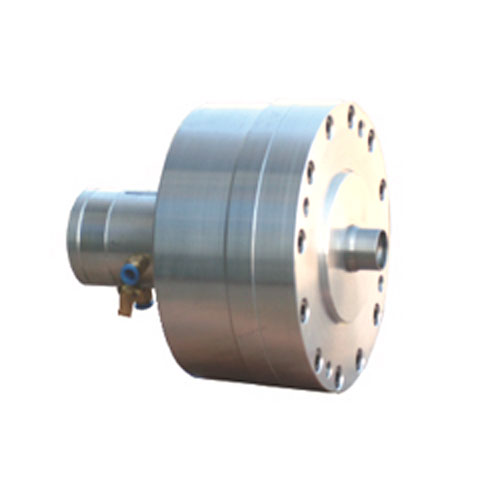

產品：P21B
產品特性:
■特點：
☆高速不通孔缸， 與動力卡盤、彈簧夾頭或其它動力夾具配套使用。
☆是數控車床理想的動力源。
■Specificity:
☆This series is high-speed ,non-through-hole pneumatic cylinders, it is suitable for using with power chucks and spring clips or the othe power clamping fixtures.
☆I(lǐng)t is the ideal power source for the CNC lathes.
產品詳情

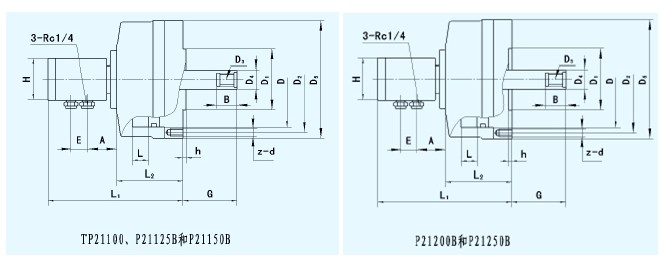

■尺寸參數 Dimension Parameters
|
規格
Size
|
D
|
D1
|
D2
|
D3
|
D4
|
D5
|
B
|
h
|
H
|
G
|
L1
|
L2
|
A
|
E
|
z-d
|
|
max
|
min
|
|
TP21100
|
100
|
70
|
85
|
M16
|
26
|
125
|
30
|
5
|
56
|
35
|
20
|
139
|
72
|
30
|
13
|
6-M8
|
|
P21125B
|
125
|
110
|
130
|
M20
|
36
|
150
|
32
|
6
|
56
|
50.5
|
27
|
189
|
95
|
39
|
15
|
6-M12
|
|
P21150B
|
150
|
95
|
160
|
M20
|
30
|
185
|
32
|
5
|
65
|
51.5
|
26.5
|
198
|
104
|
39
|
15
|
4-M12
|
|
P21200B
|
200
|
95
|
160
|
M24
|
36
|
232
|
40
|
6
|
65
|
60
|
30
|
198
|
104
|
39
|
15
|
8-M12
|
|
P21250B
|
250
|
160
|
200
|
M24
|
36
|
283
|
40
|
6
|
65
|
80
|
45
|
203
|
109
|
39
|
15
|
12-M12
|
■性能參數 Characteristic Parameters
|
規格
Size
|
活塞有效面積㎝2
Piston effective area
|
活塞行程Lmax
Piston stroke
|
最大使用壓力Mpa
Max. acting pressure
|
極限轉速r/min
Max. speed
|
最大推拉力kN
Max. draw pull
|
凈重Kg
Net WT
|
|
TP21100
|
73
|
15
|
0.8
|
5000
|
5.2
|
3.5
|
|
P21125B
|
115
|
23.5
|
0.8
|
4000
|
8
|
6.5
|
|
P21150B
|
169
|
25
|
0.8
|
4000
|
12
|
9
|
|
P21200B
|
303
|
30
|
0.8
|
3000
|
21
|
18
|
|
P21250B
|
480
|
35
|
0.8
|
2500
|
34
|
35
|
|
