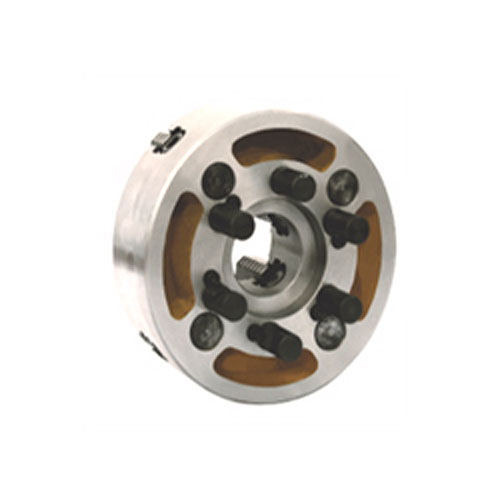

產品：K72口/口D型
產品特性:
產品詳情

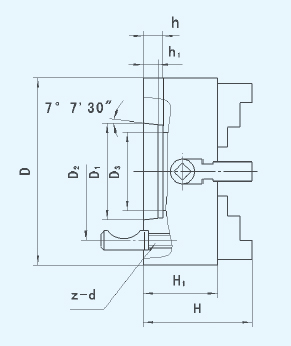

■D型：拉桿、凸輪鎖緊連接 Form D: mounting with studs for camlocks
|
規格D
Size
|
主軸頭號
short taper No.
|
D1
|
D2
|
D3
|
H
|
H1
|
H
|
h1
|
z-d
|
凈重Kg
Net WT.
|
|
160
|
3
|
53.975
|
70.6
|
45
|
95
|
65
|
13
|
10
|
3-M10×1
|
9
|
|
200
|
3
|
53.975
|
70.6
|
51
|
107
|
75
|
—
|
10
|
3-M10×1
|
15
|
|
200
|
4
|
63.513
|
82.6
|
56
|
107
|
75
|
13
|
10
|
3-M10×1
|
15
|
|
250
|
4
|
63.513
|
82.6
|
61
|
120
|
80
|
—
|
10
|
3-M10×1
|
23
|
|
320 350
|
4
|
63.513
|
82.6
|
61
|
134
|
90
|
—
|
10
|
3-M10×1
|
40,53
|
|
200
|
5
|
82.563
|
104.8
|
56
|
107
|
75
|
15
|
12
|
6-M12×1
|
15
|
|
250
|
5
|
82.563
|
104.8
|
75
|
120
|
80
|
15
|
12
|
6-M12×1
|
23
|
|
320 350
|
5
|
82.563
|
104.8
|
79
|
134
|
90
|
—
|
12
|
6-M12×1
|
40,53
|
|
400
|
5
|
82.563
|
104.8
|
79
|
143
|
95
|
—
|
12
|
6-M12×1
|
55
|
|
250
|
6
|
106.375
|
133.4
|
75
|
120
|
80
|
16
|
13
|
6-M16×1.5
|
23
|
|
320 350
|
6
|
106.375
|
133.4
|
95
|
134
|
90
|
16
|
13
|
6-M16×1.5
|
40,53
|
|
400
|
6
|
106.375
|
133.4
|
95
|
143
|
95
|
16
|
13
|
6-M16×1.5
|
55
|
|
500
|
6
|
106.375
|
133.4
|
103
|
161
|
106
|
—
|
13
|
6-M16×1.5
|
102
|
|
320 350
|
8
|
139.719
|
171.4
|
95
|
134
|
90
|
18
|
14
|
6-M20×1.5
|
40,53
|
|
400
|
8
|
139.719
|
171.4
|
125
|
143
|
95
|
18
|
14
|
6-M20×1.5
|
55
|
|
500
|
8
|
139.719
|
171.4
|
136
|
161
|
106
|
—
|
14
|
6-M20×1.5
|
106
|
|
400
|
11
|
196.869
|
235.0
|
125
|
143
|
95
|
20
|
16
|
6-M22×1.5
|
68
|
|
500
|
11
|
196.869
|
235.0
|
160
|
161
|
106
|
20
|
16
|
6-M22×1.5
|
102
|
|
630
|
11
|
196.869
|
235.0
|
180
|
180
|
118
|
20
|
16
|
6-M22×1.5
|
159
|
|
500
|
15
|
285.775
|
330.2
|
160
|
161
|
106
|
21
|
17
|
6-M24×1.5
|
106
|
|
630
|
15
|
285.775
|
330.2
|
180
|
180
|
118
|
21
|
17
|
6-M24×1.5
|
159
|
產品備注
※根據用戶需求，還可提供配帶分離爪（滑座和頂爪連接尺寸符合ISO3442）的四爪單動卡盤，型號為K72口A/口、K72口D/口、 K72口E/口。
※Two-piece jaw sets on request (top jaws with tongue groove conforming to ISO3442).Thte model is K72口A/口、K72口D/口、 K72口E/口 separatly.
|
