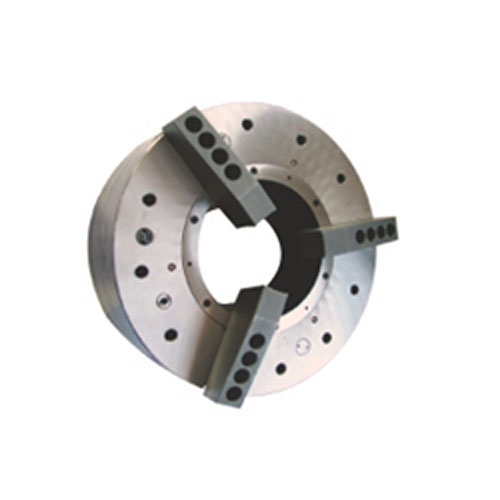

產品：K53
產品特性:
■特點：
☆短圓柱連接形式。
☆前置式氣動夾緊，卡盤內藏氣缸，機床前后可各配一臺卡盤。
☆主要適用于管子車床。
☆內藏逆止閥，斷開氣源，方可工作。
■Specificity:
☆Short cylindrical center mounting.
☆Front-equipped air operated clamping the pnenmatic cylinder inside chuck and a set of chuck can be equipped in front or rear of the machine.
☆Suitable for pipe lathes.
☆The inverted valve equipped inside and the chucks just work when switching off air source.
產品詳情

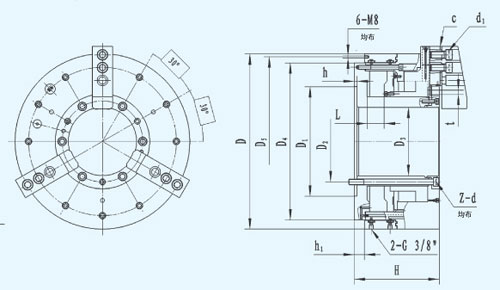

■尺寸Dimension Parameters
|
規(guī)格
Size
|
D1
|
D2
|
D3
|
D4
|
D5
|
H
|
C
|
h
|
h1
|
d1
|
z-d
|
|
465
|
310
|
375
|
170
|
400
|
445
|
196.5
|
2.5×90°
|
8
|
18.5
|
M16
|
9-M12
|
|
550
|
415
|
460
|
260
|
484
|
530
|
222
|
2.5×90°
|
8
|
26.5
|
M16
|
9-M12
|
|
685
|
510
|
580
|
310
|
610
|
666
|
261
|
2.5×90°
|
8
|
20
|
M24
|
12-M16
|
|
850
|
700
|
745
|
410
|
775
|
830
|
303
|
2.5×90°
|
8
|
25
|
M24
|
12-M16
|
■性能參數Characteristic Parameters
|
規(guī)格D
Size
|
楔心套行程L
Lmax Piston stroke
|
單爪行程t Jaw stroke
|
使用壓力MPa
Max. acting pressure
|
夾緊力kN(0.6MPa)
Max. gripping force
|
極限轉速r/min
Max. speed
|
|
465
|
28.5
|
7.6
|
0.3-1.0
|
75
|
1000
|
|
550
|
32
|
8
|
0.3-1.0
|
84
|
700
|
|
685
|
38
|
10
|
0.3-1.0
|
150
|
600
|
|
850
|
45
|
12
|
0.3-1.0
|
230
|
500
|
|
